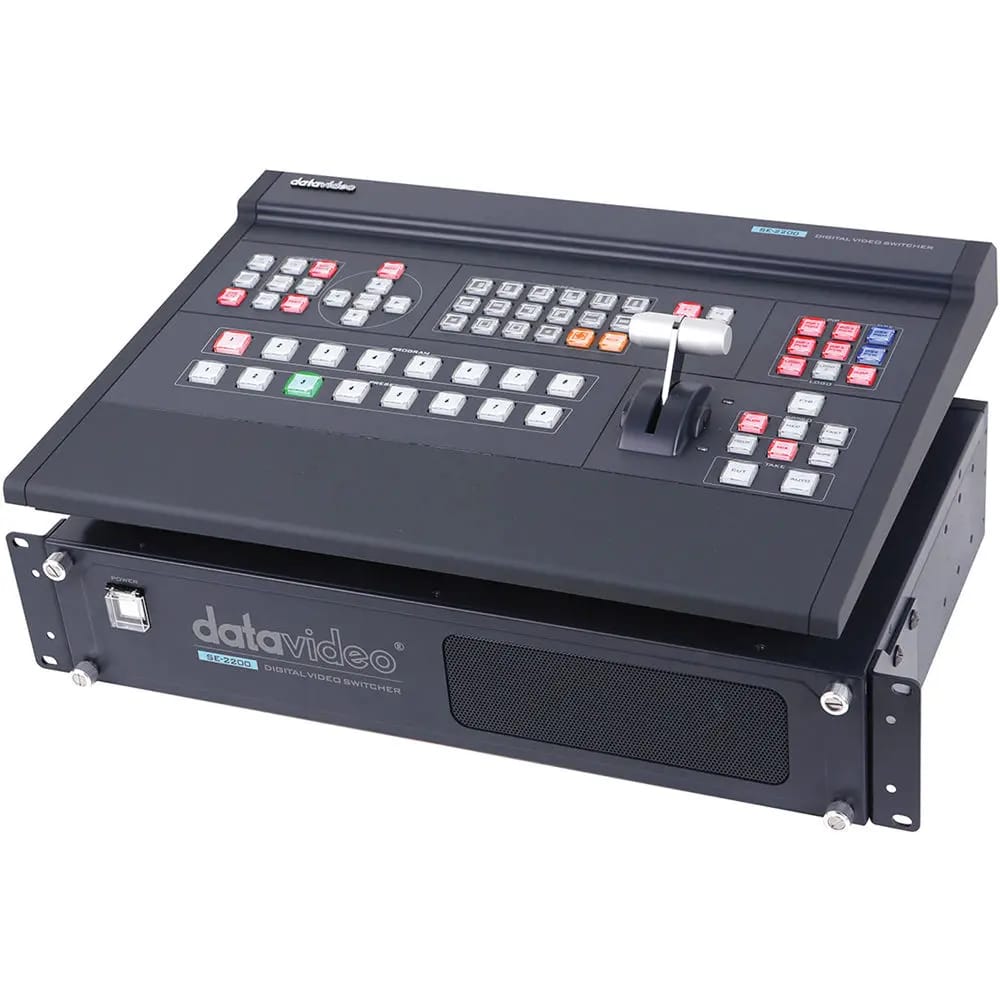

Datavideo SE-2200 Video Switcher with HD-SDI and HDMI Inputs
379,999 TK
Warranty
3 Year Official Warranty – 36 months coverage
Key Features
6-Input Multi-Definition Switcher
Control Panel / Rackmount Processor Unit
6x HD-SDI & 2x HDMI Inputs
6x Assignable HD-SDI Outputs
2x HDMI Multi-View Outputs
Built-in TC-200 Title Creator
Luma Key / 16 Wipe Effects
Dual Picture-in-Picture
Cross Point Assignment
Computer Control / Tally Output
In stock
Available to order now.
Datavideo SE-2200 Overview
The Datavideo SE-2200 HD-SDI and HDMI Video Switcher is a 6-input switcher consisting of control panel and separate rack-mountable processing unit. It accepts resolutions up to 1080i60 from a combination of six HD-SDI and two HDMI inputs. The HDMI inputs work with DVI computer signals, while the SDI inputs are useful for long capable runs and connecting professional video equipment. All of the inputs are re-assignable.
The SE-2200 has six assignable HD-SDI outputs and two HDMI multi-view outputs. The SDI outputs can be Program, Program with Logo, Program with Logo and Titles, or Preview. Dual Picture-in-Picture support lets you display up to two other video sources in smaller screens over the main program output. In terms of audio, there are four XLR mono inputs (two stereo pairs) and two XLR mono outputs (one stereo pair). The switcher also supports audio embedding to the HD-SDI outputs.
A built-in TC-200 Character Generator lets one of the HDMI inputs be used to accept video from a computer with Datavideo's CG-200 software installed for title creation. You can also bring in graphics from presentaion software, such as PowerPoint, and take advantage of the switcher's Luma key feature. Additional professional features include 16 wipe transitions with border options, on-screen clock and countdown display, tally support, and RS-232 or RS-422 control. A 12VDC power adapter and cord come included.
6-Input multi-definition switcher
Control panel with separate, rackmountable processing unit
4x HD-SDI and 2x HD-SDI or HDMI inputs
Re-configurable inputs
6x Assignable HD-SDI outputs
2x HDMI outputs for dual multi-view screens
16 Wipe effects with border options
On-screen clock
Countdown counter
Dual Picture-in-Picture
Built-in TC-200 Title Creator (Use with a laptop and CG-200 software to create titles)
Cross point assignment
PC remote control
Tally output (compatible with ITC-100 with optional cable)
12VDC operation voltage
