Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included)
52,199 TK
In stock
Available to order now.
Warranty
1 Year Official Warranty - 12 months coverage
Key Features
Convert a 12G-SDI Signal to HDMI
Convert Optical Fiber to HDMI (Optional)
Up to DCI 4K/60p Support on Input/Output
XLR Outputs Switchable to AES/EBU
Ethernet Port for Remote Control or PoE
Built-In 90-240V Power Supply
Rack-Mount
Duct or Desktop Installation
Install up to 3 Units in Single 19" Rack
Supports Optional LCD Smart Front Panel
Intelligent Thermal Heat Dissipation
Share

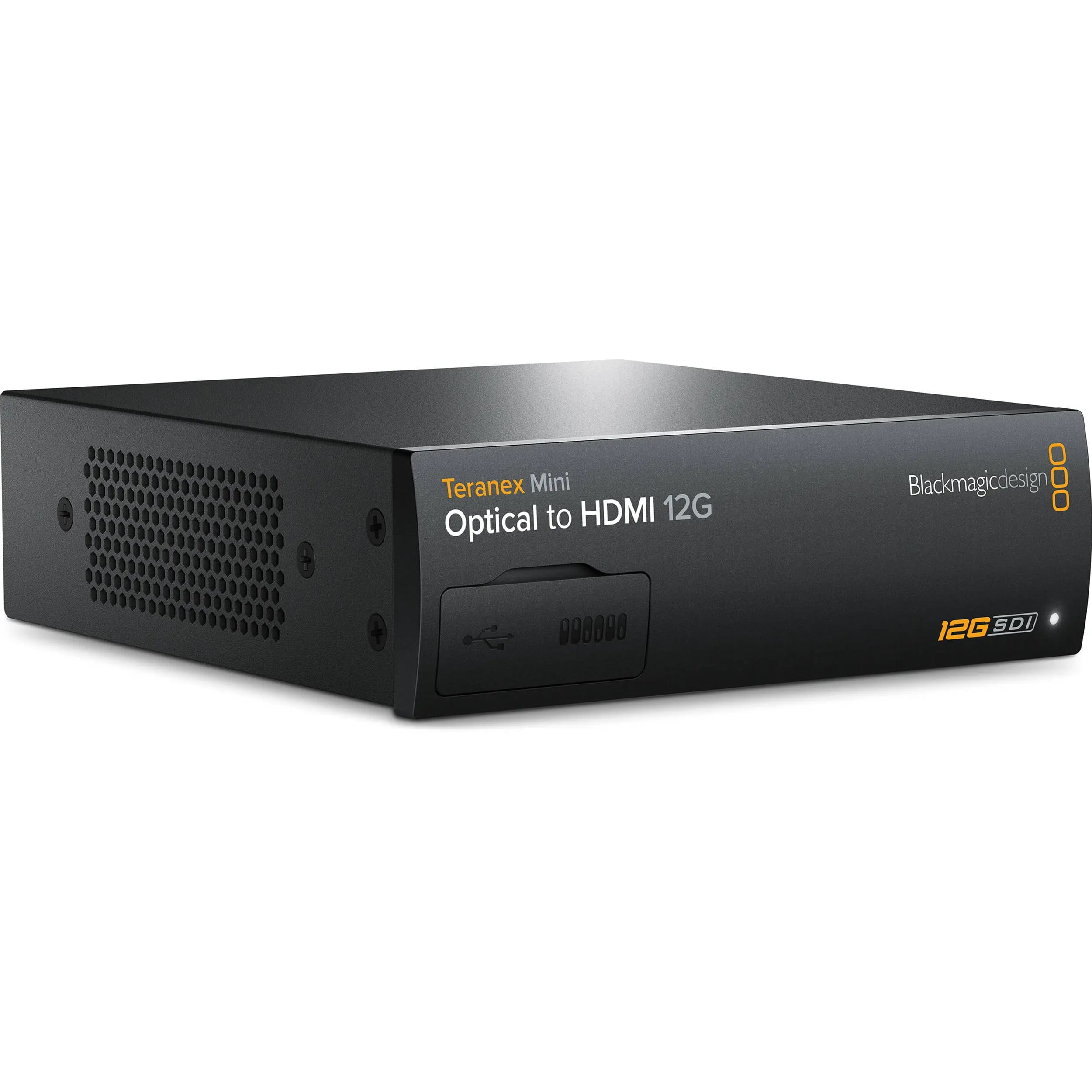

The Teranex Mini Optical to HDMI 12G Converter from Blackmagic Design allows you to convert up to a 12G-SDI signal to HDMI, or install an optional optical fiber module and convert up to 12G fiber signals to HDMI. You can input and output up to DCI 4K (4096 x 2160) 60p signals on both input and output, connecting sources such as the Blackmagic URSA on the input end.
The Teranex Mini Optical to HDMI 12G Converter from Blackmagic Design allows you to convert up to a 12G-SDI signal to HDMI, or install an optional optical fiber module and convert up to 12G fiber signals to HDMI. You can input and output up to DCI 4K (4096 x 2160) 60p signals on both input and output, connecting sources such as the Blackmagic URSA on the input end.
An optical fiber module is not included but is supported on the rear. 3G and 6G modules are currently available (model #s ADPT-3GBI/OPT and ADPT-6GBI/OPT), and 12G modules are in the works.
The Teranex Mini Optical to HDMI 12G Converter also features full-size XLR outputs that are switchable between balanced analog and AES/EBU digital audio, and which allow you to output separate audio. The converter also has an Ethernet port that allows you to manage the converter remotely from a Mac or Windows computer using the included Converter Utility software. This capability is especially useful when you're in a larger facility using numerous converters.
The Ethernet port can alternatively be used for Power-over-Ethernet (PoE). If you don't want to use PoE, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.
The Teranex Mini can be used rack-mounted, concealed in cable ducts, or desktop-mounted. Its compact size makes it useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1 RU 19" rack tray.
The standard front panel can be replaced with an optional Smart Panel that offers a spin knob, color LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels and verify timecode. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus while seeing exactly what you're converting.
The Teranex Mini is designed with intelligent heat dissipation that prevents overheating. What makes this feature so effective is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimizing noise. Moreover, if the Teranex Mini gets too hot, you'll instantly receive a notification through the remote control Ethernet utility and on the front panel. When multiple units are rack-mounted side by side, each Teranex Mini works together to pull air through the rack, keeping all units cool and providing redundancy for each one.
Convert a 12G-SDI signal to an HDMI output
Convert optical fiber to HDMI via optional fiber module
Supports up to DCI 4K (4096 x 2160) 60p signals on input and output
Full-size XLR ports switchable between balanced analog and AES/EBU audio
Ethernet port supporting PoE or remote control via included Mac/Windows software
Built-in 90-240V power supply (optional standard IEC power cable required)
Can be installed in 19" racks (up to 3 units side-by-side), cable ducts, or desktop-mounted
Front panel is replaceable with an optional LCD Smart Panel
Intelligent thermal heat dissipation
Full SDI re-clocking and low jitter
Questions & Answers
What is the latest Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) price in Bangladesh?
The latest Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) price in Bangladesh is 52,199 TK. Price may change based on stock, offer, and supplier update.
Where can I find the current Blackmagic Design Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) price in Bangladesh?
Camera Bazar lists the current Blackmagic Design Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) price in Bangladesh as 52,199 TK, with availability depending on stock and offer updates.
Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) এর দাম কত?
Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) এর বর্তমান দাম 52,199 TK। স্টক ও অফারের উপর দাম পরিবর্তন হতে পারে।
Where can I buy Blackmagic Design Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) in Bangladesh?
You can buy Blackmagic Design Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) from Camera Bazar online or from Camera Bazar showrooms in Bangladesh, subject to availability.
Is Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) available now?
Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included) is in stock at Camera Bazar. Availability can change, so confirm stock before ordering.
What are the key specifications of Blackmagic Design Teranex Mini Optical to HDMI 12G Converter (Optical Fiber Module Not Included)?
Key specifications include Input Signal: 12G-SDI, Output Signal: HDMI, Max Resolution: DCI 4K (4096 x 2160) 60p, Audio Output: XLR, switchable to AES/EBU. See the specifications table on this page for full details.
