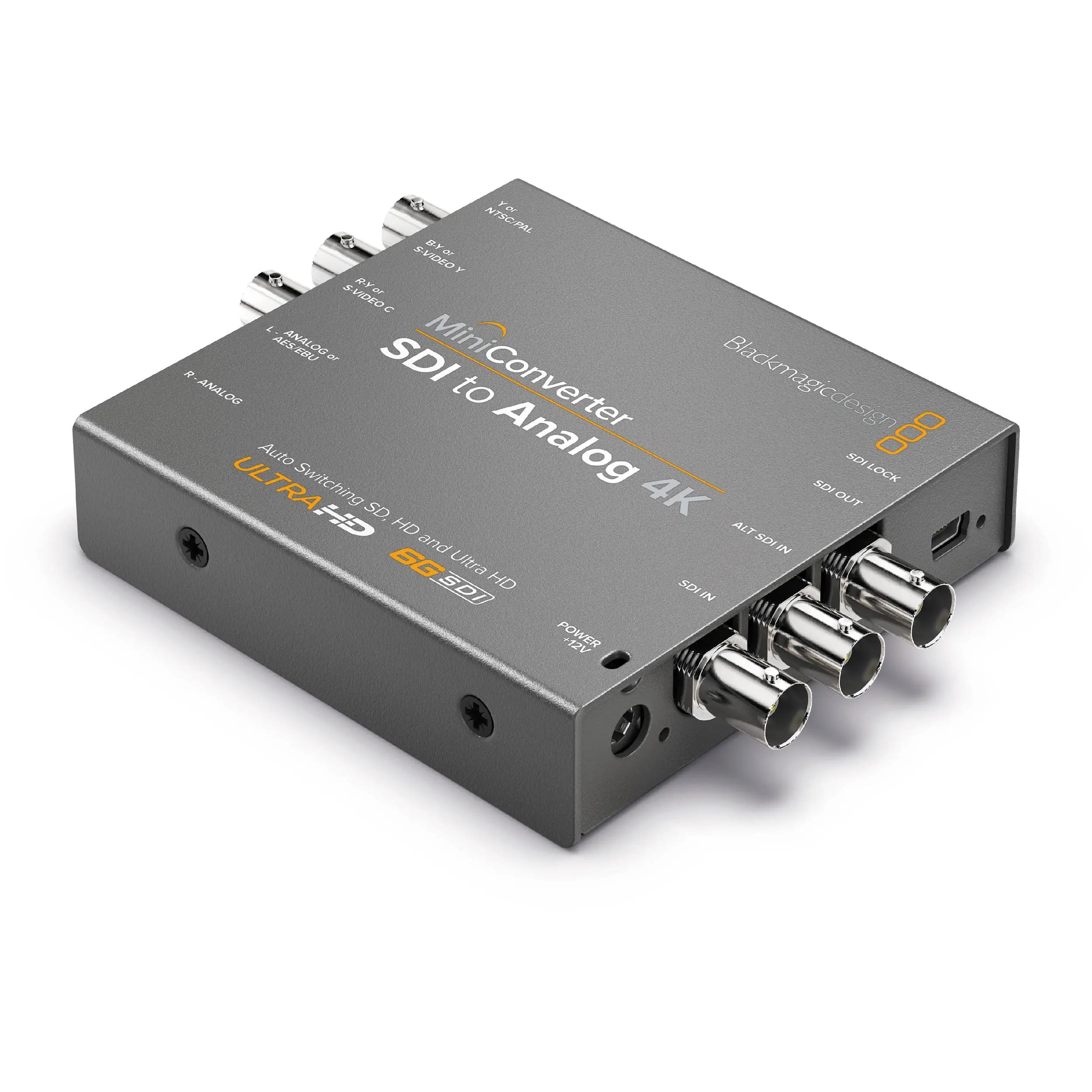

Blackmagic Design Mini Converter SDI to Analog 4K
39,000 TK
In stock
Available to order now.
Warranty
1 Year Official Warranty - 12 months coverage
Key Features
Single Link SD/HD/3G/6G-SDI Input
Component, Composite, & S-Video Output
SD, HD, UHD 4K & DCI 4K Input Signals
Automatic Input Signal Detection
Redundant SDI Input & Looped SDI Output
Analog & AES-EBU Digital Audio Outputs
24-bit, 48 kHz Audio
Control via DIP Switches or Software
USB 2.0 Port for Firmware Updates
12V Universal Power Supply Included
Share
The Mini Converter SDI to Analog 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analog SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment which outputs resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with SD and HD analog video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
The Mini Converter SDI to Analog 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analog SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment which outputs resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with SD and HD analog video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 6G-SDI technology, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. A redundant SDI input is provided as an optional back up, and an SDI loop-through output is available for sending the SDI signal to an additional device. Up to 16 channels of de-embedded SDI input audio can be outputted as AES/EBU digital audio or balanced analog audio output via 1/4" output jacks.
The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.
4:2:2 Sampling and color precision
24-bit, 48 kHz audio sampling
Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601 standards
Questions & Answers
What is the latest Blackmagic Design Mini Converter SDI to Analog 4K price in Bangladesh?
The latest Blackmagic Design Mini Converter SDI to Analog 4K price in Bangladesh is 39,000 TK. Price may change based on stock, offer, and supplier update.
Where can I find the current Blackmagic Design Blackmagic Design Mini Converter SDI to Analog 4K price in Bangladesh?
Camera Bazar lists the current Blackmagic Design Blackmagic Design Mini Converter SDI to Analog 4K price in Bangladesh as 39,000 TK, with availability depending on stock and offer updates.
Blackmagic Design Mini Converter SDI to Analog 4K এর দাম কত?
Blackmagic Design Mini Converter SDI to Analog 4K এর বর্তমান দাম 39,000 TK। স্টক ও অফারের উপর দাম পরিবর্তন হতে পারে।
Where can I buy Blackmagic Design Blackmagic Design Mini Converter SDI to Analog 4K in Bangladesh?
You can buy Blackmagic Design Blackmagic Design Mini Converter SDI to Analog 4K from Camera Bazar online or from Camera Bazar showrooms in Bangladesh, subject to availability.
Is Blackmagic Design Mini Converter SDI to Analog 4K available now?
Blackmagic Design Mini Converter SDI to Analog 4K is in stock at Camera Bazar. Availability can change, so confirm stock before ordering.
What are the key specifications of Blackmagic Design Mini Converter SDI to Analog 4K?
Key specifications include Input Type: Single Link SD/HD/3G/6G-SDI, Output Types: Component, Composite, S-Video, Supported Resolutions: SD, HD, UHD 4K, DCI 4K, Audio Outputs: Analog & AES-EBU Digital. See the specifications table on this page for full details.
