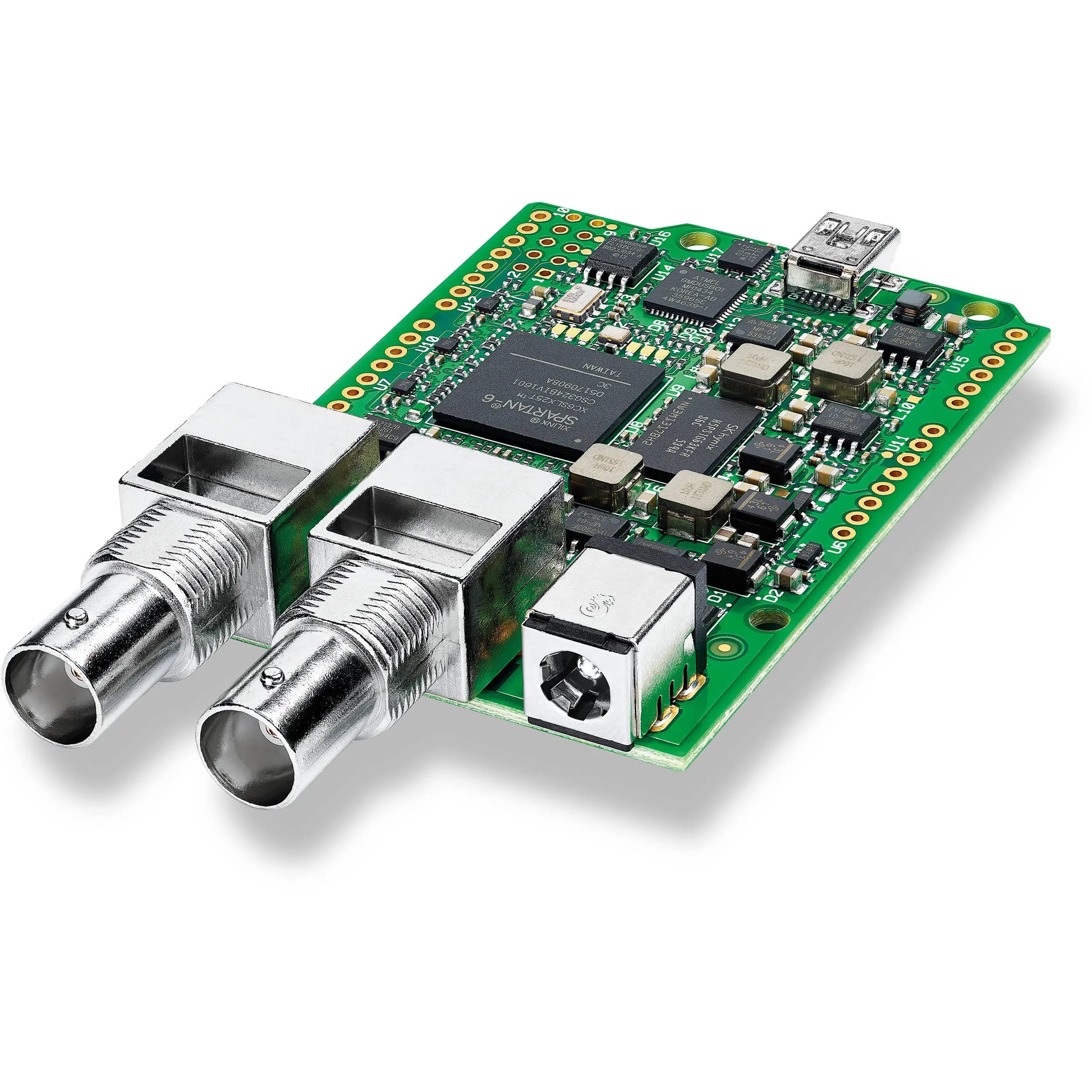

Blackmagic Design 3G-SDI Arduino Shield
13,080 TK
In stock
Available to order now.
Warranty
1 Year Official Warranty - 12 months coverage
Key Features
Programmable Camera Controller
Open-Source Arduino Platform
Control Camera Over SDI Program Return
Compatible with BMD Studio Cameras
Adjust Gain
Detail
Shutter
Zoom
Adjust Focus
Iris
Pedestal
Color Corrector
Program Using Arduino IDE
Requires Arduino Controller
Works with Other I2C BUS Controllers
Share
Create a custom camera control solution with the 3G-SDI Arduino Shield from Blackmagic Design. Working in conjunction with a separately available Arduino controller, the Shield embeds an SDI control signal in the Program return feed that will operate compatible cameras, such as the Blackmagic Studio Camera or URSA Mini with the Studio Camera firmware update. These are the same controls output via an ATEM series switcher.
Create a custom camera control solution with the 3G-SDI Arduino Shield from Blackmagic Design. Working in conjunction with a separately available Arduino controller, the Shield embeds an SDI control signal in the Program return feed that will operate compatible cameras, such as the Blackmagic Studio Camera or URSA Mini with the Studio Camera firmware update. These are the same controls output via an ATEM series switcher.
This open communication protocol takes advantage of blanking space in the SDI data stream to add talkback, tally, and other camera control information directly to the camera via the program return feed. Because of its open nature, you can create custom solutions that are compatible with switchers, cameras, and other supporting hardware
The following controls are supported via SDI (Note: Availability may depend on camera and lens configuration):
Tally
Gain
Detail
Shutter
Zoom
Focus
Iris
Pedestal
Color Balance
Contrast
Hue
Saturation
An Arduino is a controller - basically a simple computer - that can be embedded in other devices to create custom solutions. In this case, installing on the Shield. Once you have the Arduino, you can download the IDE (developer software) from the Arduino website, then load the Shield's "sample code". This will give you a feel for how the Arduino interoperates with the camera and help you get started programming
Arduino programs are called Sketches and are designed to be easy to write. You can install "sample code" via the Arduino IDE (available from Arduino's website) to get a feel for how the system works. The commands for camera control are documented in the ATEM and Studio Camera manuals (available from the Support section of the Blackmagic Design website)
The Arduino Shield only uses the I2C bus, which means it is also compatible with other micro controllers, including a Raspberry Pi
Questions & Answers
What is the latest Blackmagic Design 3G-SDI Arduino Shield price in Bangladesh?
The latest Blackmagic Design 3G-SDI Arduino Shield price in Bangladesh is 13,080 TK. Price may change based on stock, offer, and supplier update.
Where can I find the current Blackmagic Design Blackmagic Design 3G-SDI Arduino Shield price in Bangladesh?
Camera Bazar lists the current Blackmagic Design Blackmagic Design 3G-SDI Arduino Shield price in Bangladesh as 13,080 TK, with availability depending on stock and offer updates.
Blackmagic Design 3G-SDI Arduino Shield এর দাম কত?
Blackmagic Design 3G-SDI Arduino Shield এর বর্তমান দাম 13,080 TK। স্টক ও অফারের উপর দাম পরিবর্তন হতে পারে।
Where can I buy Blackmagic Design Blackmagic Design 3G-SDI Arduino Shield in Bangladesh?
You can buy Blackmagic Design Blackmagic Design 3G-SDI Arduino Shield from Camera Bazar online or from Camera Bazar showrooms in Bangladesh, subject to availability.
Is Blackmagic Design 3G-SDI Arduino Shield available now?
Blackmagic Design 3G-SDI Arduino Shield is in stock at Camera Bazar. Availability can change, so confirm stock before ordering.
What are the key specifications of Blackmagic Design 3G-SDI Arduino Shield?
Key specifications include Key Features: Programmable Camera Controller, Open-Source Arduino Platform, Control Camera Over SDI, Compatible with BMD Studio Cameras, Supported Controls: Gain, Detail, Shutter, Zoom, Focus, Iris, Pedestal, Color Balance, Contrast, Hue, Saturation, Compatibility: Requires Arduino Controller, Works with Other I2C BUS Controllers, Programming: Program Using Arduino IDE, Sample Code Available. See the specifications table on this page for full details.
