Blackmagic DeckLink SDI Micro
16,680 TK
In stock
Available to order now.
Warranty
1 Year Official Warranty - 12 months coverage
Key Features
Ultra HD 12G-SDI.
Built-in LCD.
Small, portable.
Popular software.
Accurate timecode.
Low latency.
Wide range of codecs.
Share
Description

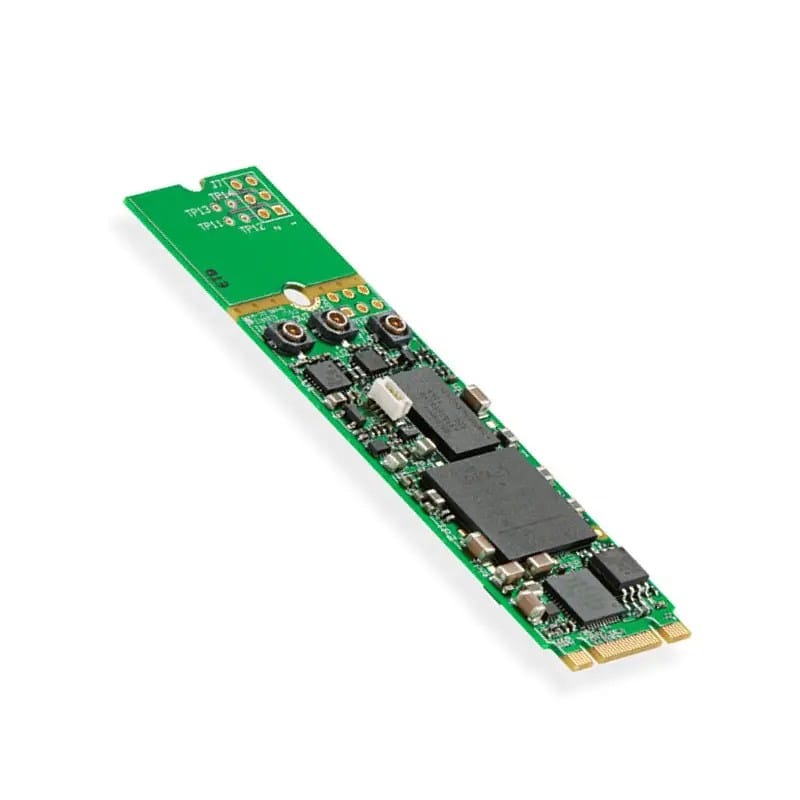

Blackmagic DeckLink SDI Micro
Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!
Price
$139
Connections
M.2
M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p
50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
SDI Video Sampling
4:2:2, 4:4:4
SDI Color Precision
8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU-R BT.656 and ITU-R BT.601.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU‑R BT.656 and ITU‑R BT.601.
Available Accessories
Part Numbers
DeckLink SDI Micro, order code: BDLKMICROSDI
SDI Cable, order code: CABLE-BDLKMIR/SDI
Physical Specifications
Operating Systems
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows 10, 64-bit.
Windows 11.
Linux
Power Requirements
Power Consumption
4.03W (max)
Environmental Specifications
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-40°C to 75°C (-40°F to 167°F)
Relative Humidity
0% to 90% non-condensing
What’s Included
DeckLink SDI Micro
Fan and Heat Sink assembly
Content and image sources: blackmagicdesign.com
Questions & Answers
What is the Blackmagic DeckLink SDI Micro price in Bangladesh?
The latest Blackmagic DeckLink SDI Micro price in Bangladesh is 16,680 TK. Price may change based on stock, offer, and supplier update.
Blackmagic DeckLink SDI Micro এর দাম কত?
Blackmagic DeckLink SDI Micro এর বর্তমান দাম 16,680 TK। স্টক ও অফারের উপর দাম পরিবর্তন হতে পারে।
Where can I buy Blackmagic Design Blackmagic DeckLink SDI Micro in Bangladesh?
You can buy Blackmagic Design Blackmagic DeckLink SDI Micro from Camera Bazar online or from Camera Bazar showrooms in Bangladesh, subject to availability.
Is Blackmagic DeckLink SDI Micro available now?
Blackmagic DeckLink SDI Micro is in stock at Camera Bazar. Availability can change, so confirm stock before ordering.
What are the key specifications of Blackmagic DeckLink SDI Micro?
Key specifications include Price: $139, Connections: M.2 PCI Express 1 lane generation 3, Operating Systems: Mac 11.1+, Windows 10/11, Linux, Power Consumption: 4.03W (max). See the specifications table on this page for full details.
