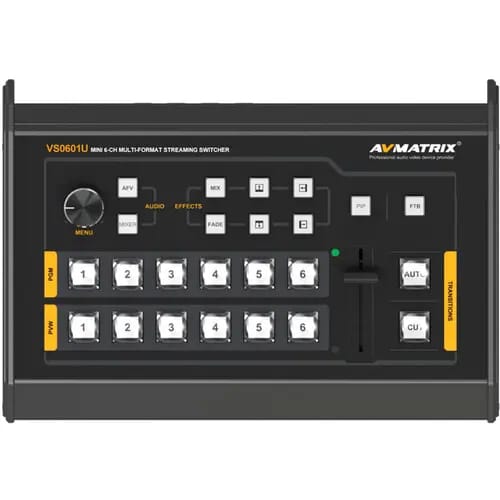

AVMATRIX VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher with USB Streaming
68,625 TK
Warranty
2 Years Official Warranty – 24 months coverage
Key Features
Compact 6-Channel Video Switcher
4 x 3G-SDI and 2 x HDMI Inputs
SDI/HDMI PGM, AUX, and Multiview Outputs
Stream via PC with USB Type-C Output
Input up to 1080p Video via HDMI
Mix/Fade/Wipe Effects
T-Bar, Auto, and Cut Transitions
Audio Mixing, Multiview, PiP Layout
GPIO for Live Tally, FTB for Emergency
In stock
Available to order now.
Switch up to six different HDMI and SDI video inputs while monitoring the program feed with the VS0601U Mini 6-Channel SDI/HDMI Multi-Format AV Switcher from AVMATRIX. Concert productions, events, houses of worship, virtual studios, educational institutions, and live sports programming are some of the use cases where the VS0601U could be utilized. Its portable form factor makes it a TV studio you can take anywhere and set up with minimal effort or additional equipment. This model also features a USB Type-C output that allows you to stream uncompressed video with embedded audio to any platform, such as YouTube, Facebook Live, Zoom, and others via a Windows, Mac, or Linux computer.
You can output multiview layouts via USB Type-C, HDMI, and SDI that show preview, program, and input sources, all on the same screen with configurable PiP functionality. The VS0601U features four 3G-SDI and two HDMI inputs that can be connected to cameras or other consumer or professional sources for switching up to 1080p60 video with embedded audio. You can also mix the audio using the analog stereo 2RCA and 3.5mm inputs and outputs along with the embedded audio.
Its interface features source and destination buttons and a T-bar for transitions and cuts as well as mix, fade, and wipe effects. It features a tally interface and emergency fade-to-black (FTB) functionality.
