Description

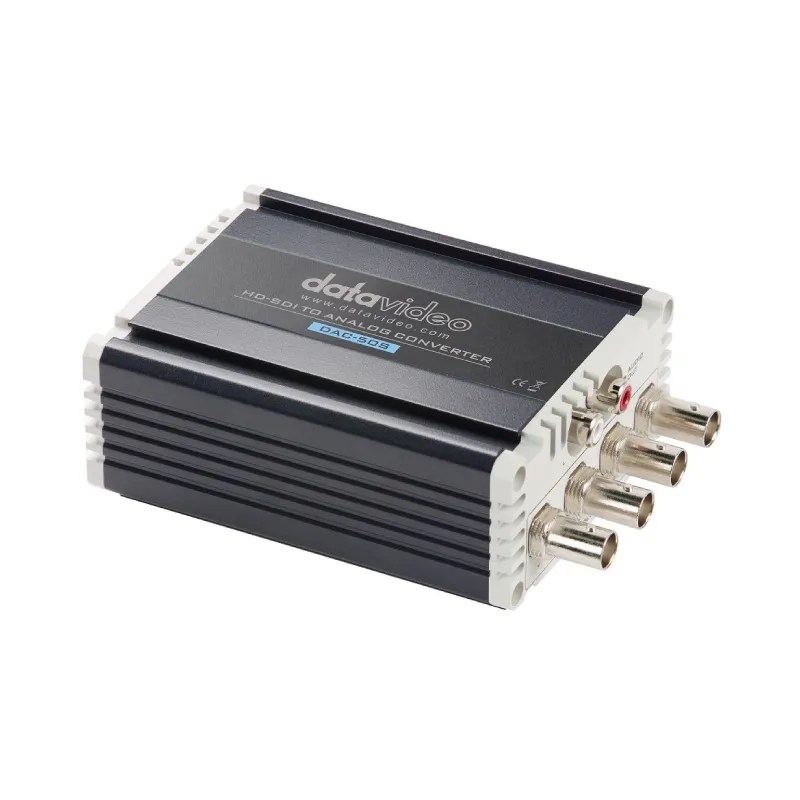

Datavideo DAC-50S SDI to Analogue
The Datavideo DAC-50S SDI to Analogue is an HD/SD-SDI to Analog converter with the ability to scale both up and down. The converter has low power consumption and low heat dissipation. It supports a wide range of 3G video formats, including 1080p 50/59.94/60Hz (DAC-8P/9P/60/70), and supports YUV and RGB color space (DAC-8P/9P/60/70). The DAC-50 is housed in a rugged metal frame, and can be rack-mounted using the optional RMK-2 2RU rack mount kit. This unit provides an SDI cable drive and features reclocking and video equalization.
| Conversion | HD/SD SDI to Analog |
| Connectors | 1 x HD/SD-SDI, video input 2 x Composite, video output 1 x YUV, video output 1 x Composite or Y/C, video output 2 x RCA, L/R stereo audio output |
| Supported Video Formats | 720p (50/59.94Hz), 1080i (50/59.94Hz), 1080p (50/59.94Hz) |
| Output Resolution | 480i, 576i |
| Power | 12 VDC, 6 W |
| Dimensions | 15 x 6 x 3″ (38.1 x 15.2 x 7.6 cm) |
| Weight | 2 lb (0.9 kg) |
