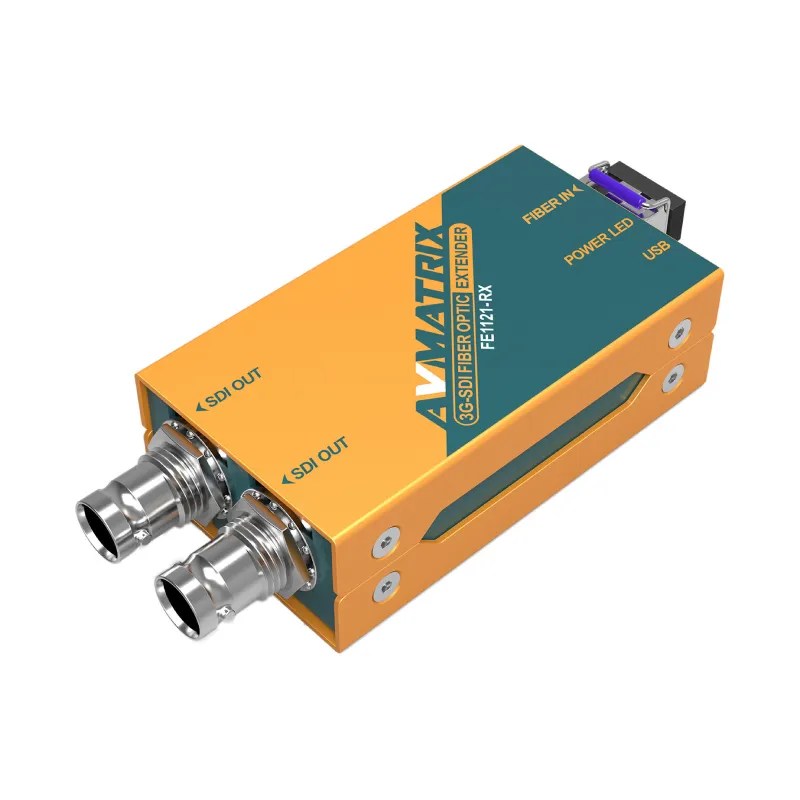

AVMATRIX 3G-SDI Fiber Optic Extender

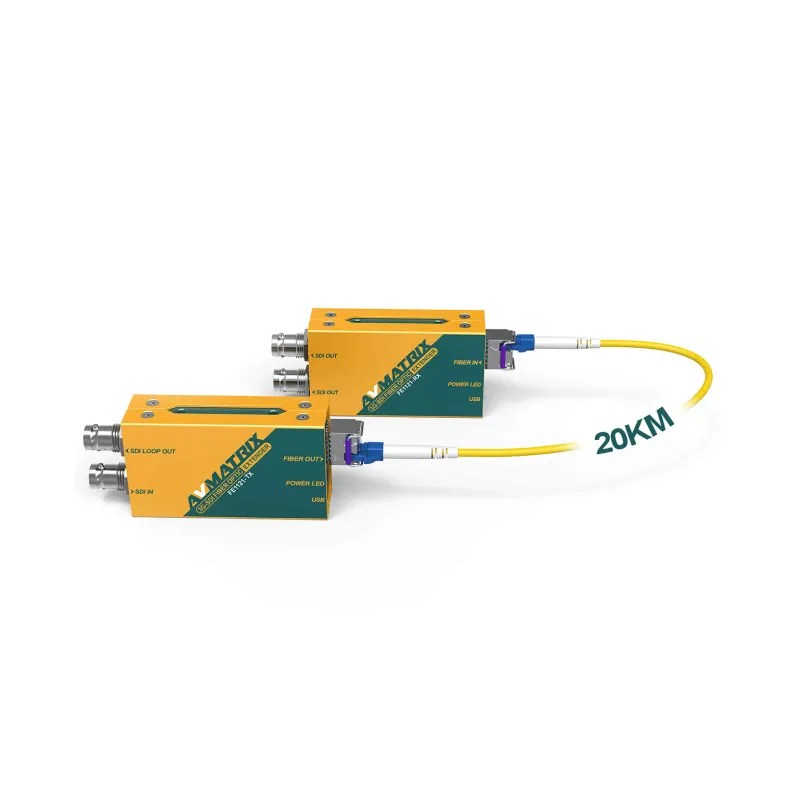

The AVMATRIX 3G-SDI Fiber Optic Extender extends HD/SD signals up to 3G-SDI using your fiber optic cable network. This transmitter and receiver set has a range of up to 12.5 miles and features dual 3G-SDI outputs on the receiver.
Supporting all SDI video resolutions up to 1080p at a bandwidth of up to 3Gb/s, this compact set is compatible with single-mode LC simplex fiber cable. Features include SDI equalization, re-clocking, hot-pluggable SFP modules with LC connectors, and up to 16-channel embedded audio support. This set includes two USB cables, 5V power adapters, and mounting brackets.
Extends HD/SD signals up to 3G-SDI, 1080p over single-mode LC fiber optic cable
SDI input and loop out, LC single-mode fiber output on transmitter
LC single-mode fiber input, dual SDI outputs on receiver
Supports metadata and 16-channel embedded audio
Signal re-clocking
Compact, USB-powered form
Product details of AVMATRIX 3G-SDI Fiber Optic Extender
- 1 x Transmitter & 1 x Receiver
- Transmits 1080p up to 12.5 Miles
- 3Gb/s Maximum Bandwidth
- SD-SDI/HD-SDI/3G-SDI Automatic Switching
- Dual 3G-SDI Outputs on Receiver
- SDI Equalization & Re-Clocking
- Hot-Pluggable SFP Module with LC Port
- 2 x USB Cables and 2 x 5V Power Adapters
- 2 x Mounting Brackets
